Fare Gate Validator – AUVAL04
Overview

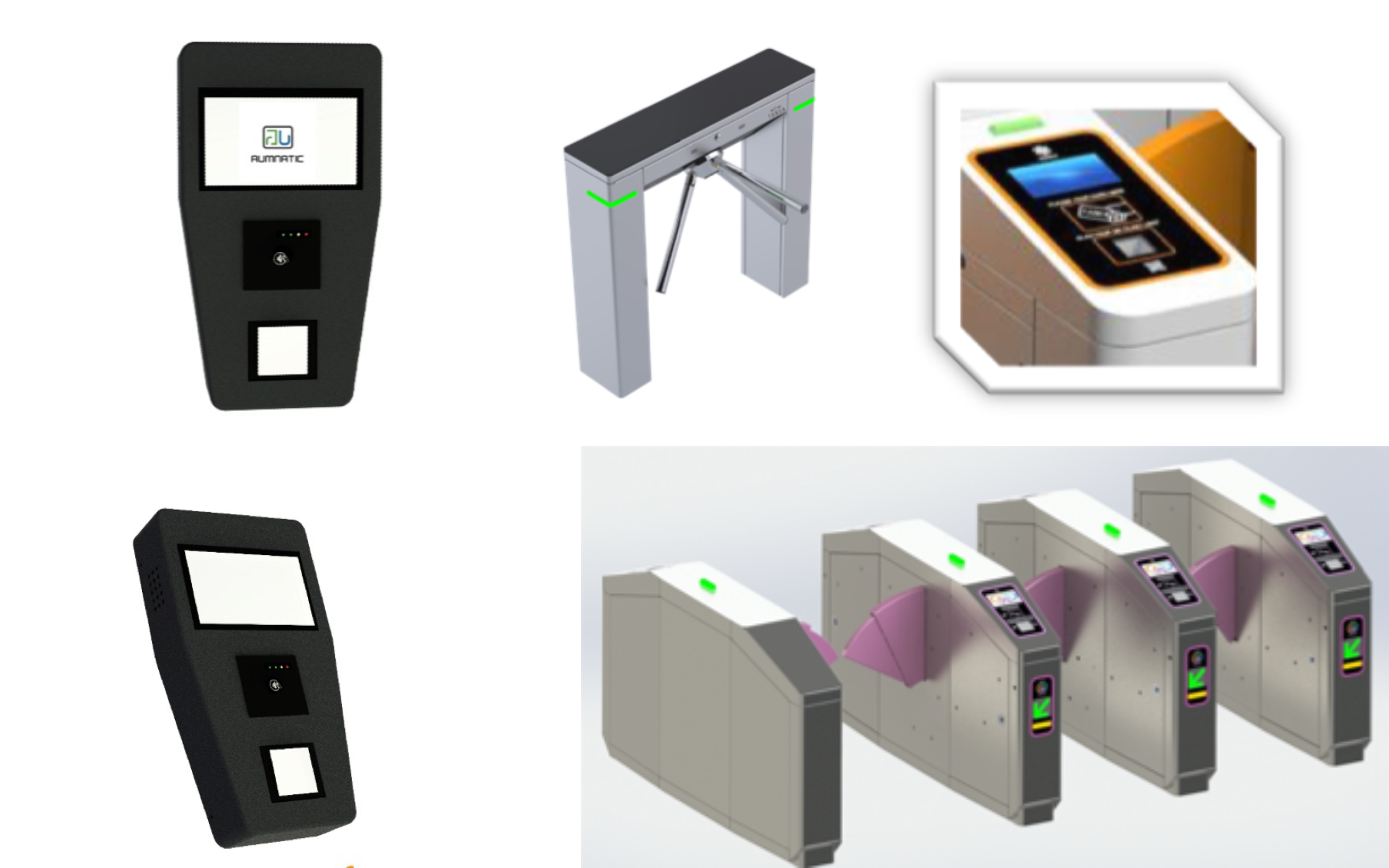

Introducing the AUVAL04, Aumnatic’s advanced validator designed for automatic gates or access control turnstiles. This versatile device supports multiple validation methods, making it ideal for both fare collection and access control systems.
Key Features:
User-Friendly Design:
- High Definition 7-Inch Display: Clear and easy-to-read interface.
- Android Operating System: Ensures smooth operation and easy updates.
- Facial Detection: Advanced technology for secure, contactless validation.
- Card and NFC Support: Accepts bank cards, NFC phones, and smart wearables.
- QR Code Reader: Handles QR codes from both paper and mobile devices.
- In-Built Battery: Provides power continuity during outages.
- Remote Device and Content Management: Allows for efficient remote administration.
Customizable Options:
- Size, Material, and Form Factor: Customizable to fit your specific requirements.
- Support for Development: Aumnatic provides assistance with software development and post-deployment support.
Efficient Operation:
- Smart Mechanical Design: Achieves a Mean Time To Recovery (MTTR) of under 10 minutes.
- Snap-In and Snap-Out Feature: Enables quick and easy maintenance, meeting service level requirements effectively.
Enhanced Security:
EMV Certified Hardware: Works with Mastercard, Visa, RuPay, Amex, and more.
Easy Integration:
- Turnstile Hardware and AFCS Systems: Integrates with various turnstile designs and Automatic Fare Collection (AFC) systems using standard protocols.
Overview
Introducing the AUVAL04, Aumnatic’s advanced validator designed for automatic gates or access control turnstiles. This versatile device supports multiple validation methods, making it ideal for both fare collection and access control systems.
Browse our Other Transit Products
For more details or to schedule a demo, contact us today at info@aumnatic.io and see how we are shaping the future of metro ticketing.
Reliable Connectivity :
Connectivity Options
Available via LAN, Wi-Fi, or Bluetooth.
Secure Communication
Ensures a separate secure channel for sensitive card data.

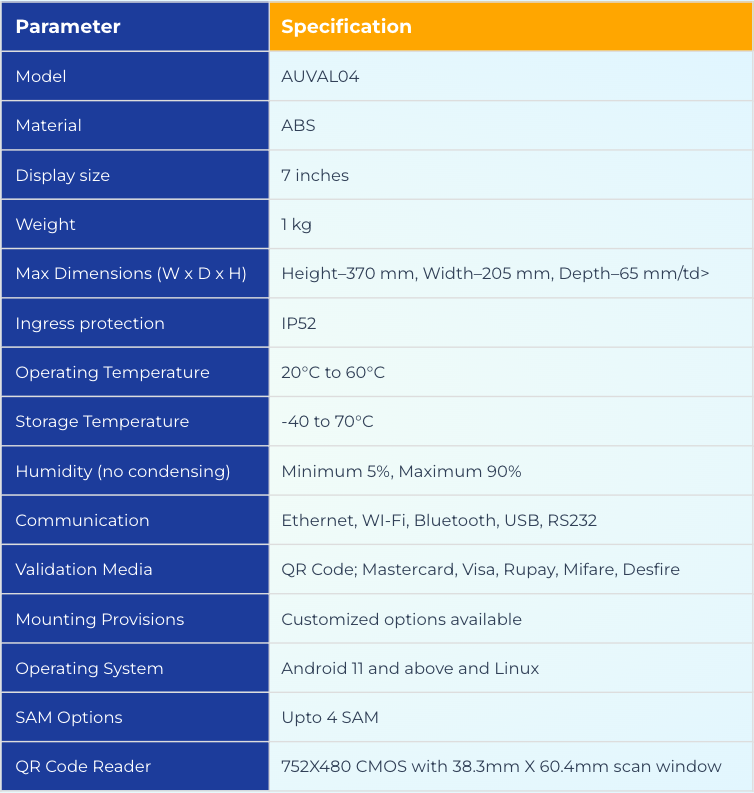

| Parameter | Specification |
|---|---|
| Model | AUVAL04 |
| Material | ABS |
| Display size | 7 inches |
| Weight | 1 kg |
| Max Dimensions (W x D x H) | Height–370 mm, Width–205 mm, Depth–65 mm/td> |
| Ingress protection | IP52 |
| Operating Temperature | 20°C to 60°C |
| Storage Temperature | -40 to 70°C |
| Humidity (no condensing) | Minimum 5%, Maximum 90% |
| Communication | Ethernet, WI-Fi, Bluetooth, USB, RS232 |
| Validation Media | QR Code; Mastercard, Visa, Rupay, Mifare, Desfire |
| Mounting Provisions | Customized options available |
| Operating System | Android 11 and above and Linux |
| SAM Options | Upto 4 SAM |
| QR Code Reader | 752X480 CMOS with 38.3mm X 60.4mm scan window |
| Parameter | Specification |
|---|---|
| Model | AUWMKSK01 |
| Material | Enclosure – MS material and Acrylic front panel |
| Weight | 25Kg +/- 5 Kg |
| Max Dimensions (W x D x H) | Width–825 mm, Depth–220 mm, Height–500mm |
| Access | Front access with lock |
| Ingress protection | IP52 |
| Power Input | AC230V, 50Hz |
| Power consumption | Max – 150W |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~65°C |
| Humidity (no condensing) | Minimum 0%, Nominal 65%, Maximum 90% |
| Internal Ventilation | Cooling Fan |
| Communication | LAN |
| Parameter | Specification |
|---|---|
| Model | AUWMKSK01 |
| Material | Enclosure – MS material and Acrylic front panel |
| Weight | 25Kg +/- 5 Kg |
| Max Dimensions (W x D x H) | Width–825 mm, Depth–220 mm, Height–500mm |
| Access | Front access with lock |
| Ingress protection | IP52 |
| Power Input | AC230V, 50Hz |
| Power consumption | Max – 150W |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~65°C |
| Humidity (no condensing) | Minimum 0%, Nominal 65%, Maximum 90% |
| Internal Ventilation | Cooling Fan |
| Communication | LAN |
| Parameter | Specification |
|---|---|
| Model | AUWMKSK01 |
| Material | Enclosure – MS material and Acrylic front panel |
| Weight | 25Kg +/- 5 Kg |
| Max Dimensions (W x D x H) | Width–825 mm, Depth–220 mm, Height–500mm |
| Access | Front access with lock |
| Ingress protection | IP52 |
| Power Input | AC230V, 50Hz |
| Power consumption | Max – 150W |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~65°C |
| Humidity (no condensing) | Minimum 0%, Nominal 65%, Maximum 90% |
| Internal Ventilation | Cooling Fan |
| Communication | LAN |
| Parameter | Specification |
|---|---|
| Model | AUWMKSK01 |
| Material | Enclosure – MS material and Acrylic front panel |
| Weight | 25Kg +/- 5 Kg |
| Max Dimensions (W x D x H) | Width–825 mm, Depth–220 mm, Height–500mm |
| Access | Front access with lock |
| Ingress protection | IP52 |
| Power Input | AC230V, 50Hz |
| Power consumption | Max – 150W |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~65°C |
| Humidity (no condensing) | Minimum 0%, Nominal 65%, Maximum 90% |
| Internal Ventilation | Cooling Fan |
| Communication | LAN |
Why Choose AUVAL04?
The AUVAL04 Fare Collection Gate Validator by Aumnatic is designed to offer a reliable and flexible solution for fare collection and access control. With its multiple validation methods, efficient recovery, and customization options, it’s well-suited for modern transit and access systems.
